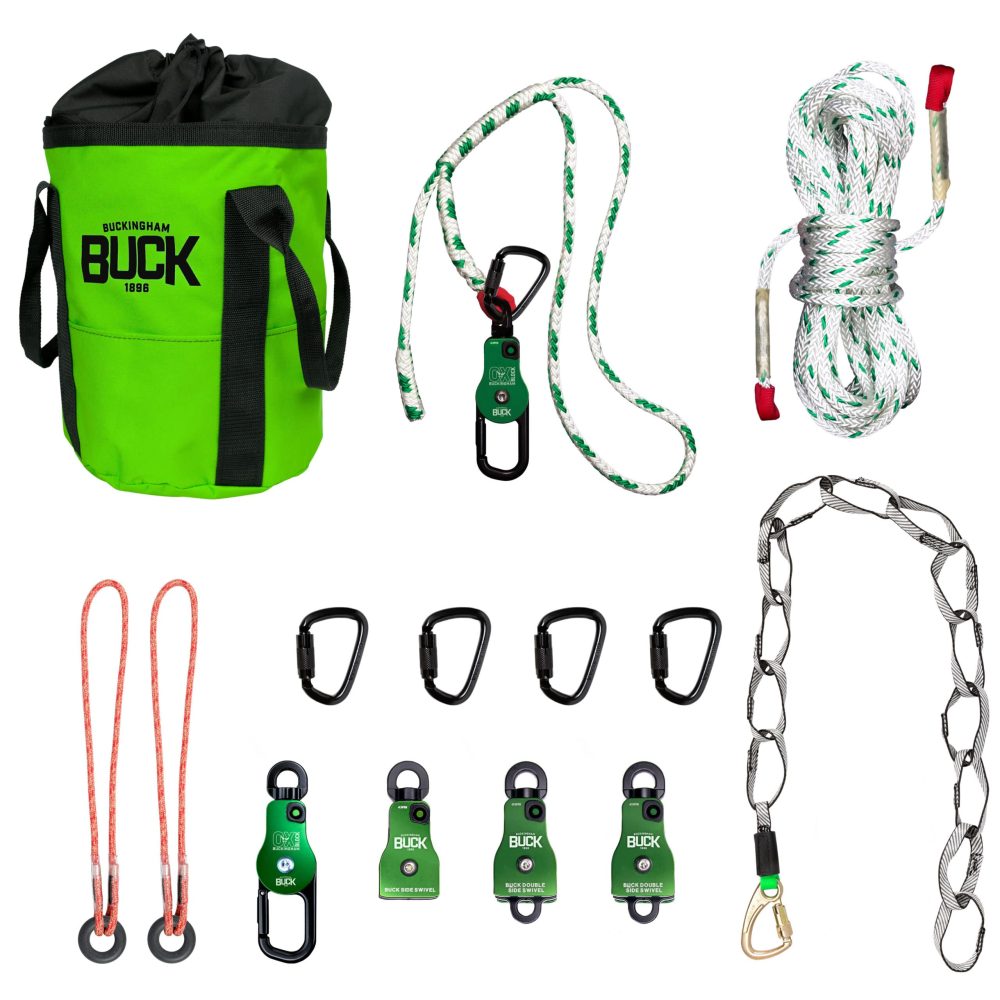

The Ultimate Ox Kit is a complete rigging system that puts numerous rigging options at the user’s fingertips. For example, the user can create a 4-to-1 mechanical advantage on up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage on up to a 35’ working height. The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease. The Ultimate Ox Kit contains: Ox Block® Swivel Eye & Carabiner w/4′ Sling – 50061A-4 (Qty: 1) Ox Block® – 50061 (Qty: 1) Buck Side Swivel Single Sheath – 50071B1 (Qty: 1) Buck Side Swivel Double Sheath – 50071B2 (Qty: 2) Rope Bag – 4374 (Qty: 1) Rope (250′) – 39SAM27Q2-250 (Qty: 1) Steel Double Action Carabiner – 5005S5 (Qty: 4) Prusik Loop with Aluminum Ring – P9J8V- M- 34 (Qty: 2) BuckLink™ Sling – 3903S-6 (Qty: 1) The Ox Block® is a rope snatchblock with an integrated friction bar used for: Hurtman/self-rescue Lowering Raising Snubbing loads It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block®. The patented Ox Block® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the Ox Block® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. The Ox Block® is ASME B30 Compliant. Product Name: OX BLOCK™ HANDLINE ASSEMBLY Material: Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5) Length: 4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ Carabiner (5005S5) Width: 5/8″ Rope, 1.99″ OX Block (50061), 3.07″ Carabiner (5005S5) Weight Rating: 5,000 lbs. Weight: 4.25 lbs. Breaking Strength: Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. Links to Relevant Hardware: 50061 OX Block™ 5005S5 Carabiner OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes Product Name: OX Block™ Material: Lightweight Aluminum Length: 10.5″ Width: 2″ Gate Opening Capacity: 1.5″ Weight: 2.15 Connectors: Four 5005S5 Double Action Carabiners HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf Made In USA?: Yes Product Name: Buck Side Swivel™ Weight: 1.6 lb Length: 7″ (178mm) Width: 3″ (76mm) Material: Aluminum Diameter of Eye: Swivel Eye – 1″ Breaking Strength: MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN) Other: Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm) Product Name: Dual Buck Side Swivel Option Number: N/A Weight: 2.6 lbs Length: 8″ Width: 3″ Material: Aluminum Diameter of Eye: Swivel Eye (upper eye) – 1″ / Becket Eye (lower eye) – 0.8″ Breaking Strength: MBS 10000 lbf 44(kn) Diameter Rope Capacity: 5/8″ (16mm) Other: Double Pulley Product Name: Large ROPEPRO™ DELUXE BAG BY BUCKINGHAM International Height: 16″ Width: 14″ Depth: 16″ Weight: 3.2 lbs Number of Pockets: 6 Outside Pockets: 6 Inside Pockets: 0 Material: Water Resistant Canvas 2 Way Snap: No Rain Flap: Water-Resistant Back Straps / Shoulder Straps: Yes / Optional Back Pack Attachment – 4375 Closure Tab: Zipper Bottom Material: Water Resistant Canvas Wheels: No Magnet: No Attachment Type: Rope Bag Bucket Hooks Included: N/A Bucket Hook Model: N/A Standards: N/A Product Name: Rigging Carabiner Option Number: N/A Weight: 10.5 oz Length: 4.68″ (119mm) Width: 3.07″ (78mm) Material: Alloy Steel Diameter of Eye: No Eye Gate Opening Capacity: 0.94″ (24mm) Gate Strength: 3600 lbs Breaking Strength: 11240 lbs (50KN) Standards Met: CSA Z259.12 / ANSI Z359.12 Other: Double Action (2) Product Name: 5/16″ PRUSIK LOOP WITH AN ALUMINUM RING Material: Warpspeed Red Rope Prusik Type: Prusik w/ Aluminum Ring Rope Size: 5/16″ Length: 34″ Max Weight Capacity: 350 lbs when fully equipped Standards: ANSI Z133 Weight: 0.3 lbs Made In USA?: Yes Product Name: BuckLink™ Sling Overall Length: 6ft long Width: 3/4″ Spectra Connector Material: Steel Material Type: Spectra Weight: 1.5 lbs User Weight Capacity: 5000 lbs individual rated loops Product Type: Sling Standards: EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). Link to Relevant Hardware: 1711 Snap Made in USA?: Yes
