I-V Characteristic Of Zener Diode

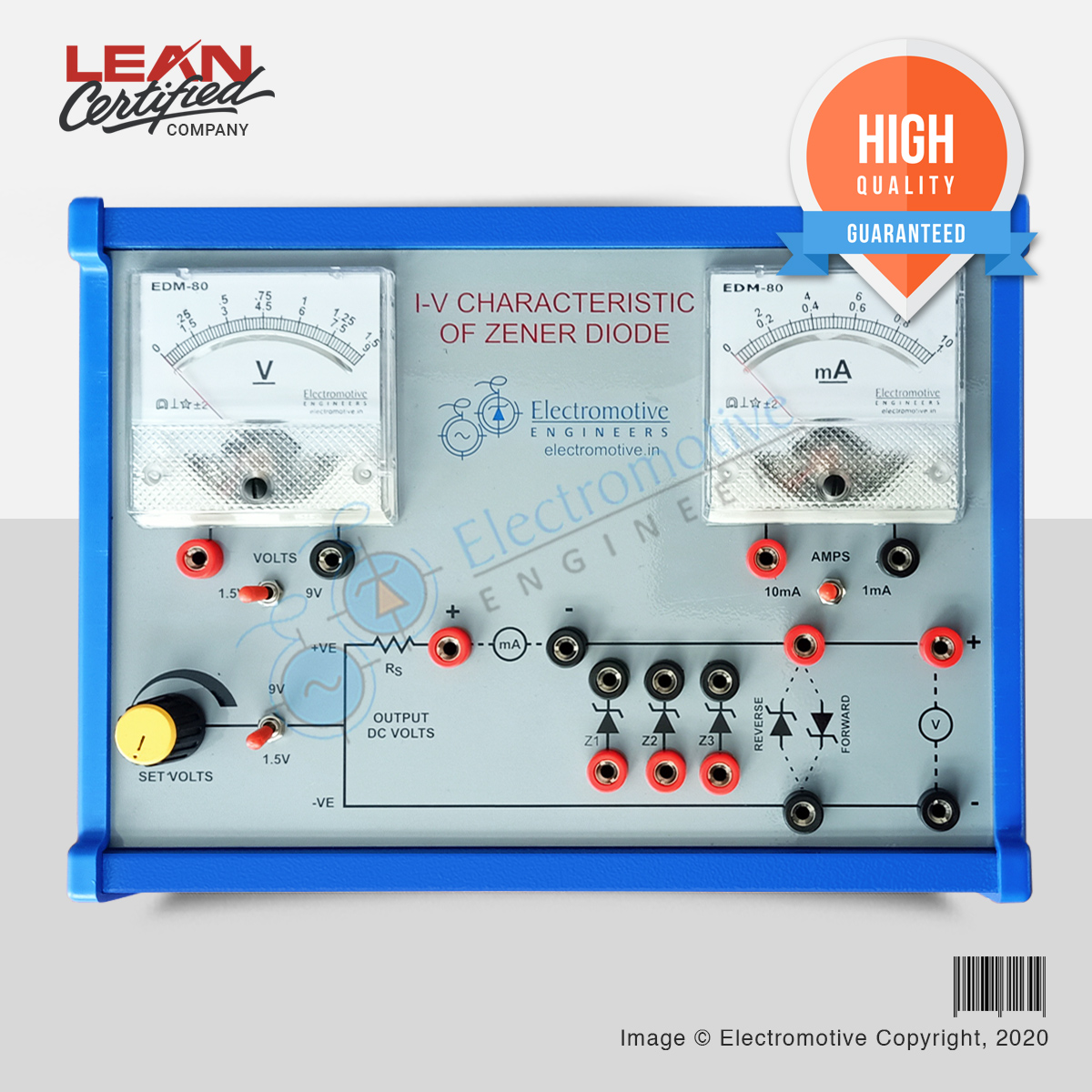

Training board is fitted with two square meters, in-built dc power supply (selectable voltage of 9V or 1.5V) and three zener diodes. All arrangement is on nicely powder-coated metal panel with their connections brought out on panel with 4 mm color coded banana sockets. IV characteristic of a zener diode in forward and reverse mode can be performed and graphs can be plotted very easily. Cabinet is a duo combo of metal and plastic and it is powered by three core lead to provide foolproof earthing to the metal parts. Kit includes six patch cords and a working manual. Power Supply 9V @ 10 mA Line Regulation: 5% Load Regulation: 2% Power Supply 1.5V @ 10 mA Line Regulation: 5% Load Regulation: 2% Meters: (EDM 80 Square meters with mirror to reduce parallax error) Range Resolution Accuracy Dual Range (9V/1.5V) 9 V 0.15V 2.5% 1.5V 0.025V 2.5% Dual Range (1mA/ 10mA) 1 mA 0.02 mA 2.5% 10 mA 0.2 mA 2.5% Gross Weight: 2.550 Kg Dimensions (packed): 350 mm X 262 mm X 100 mm (LXBXH)
