Verification of Boolean Theorem Using Logic Gates

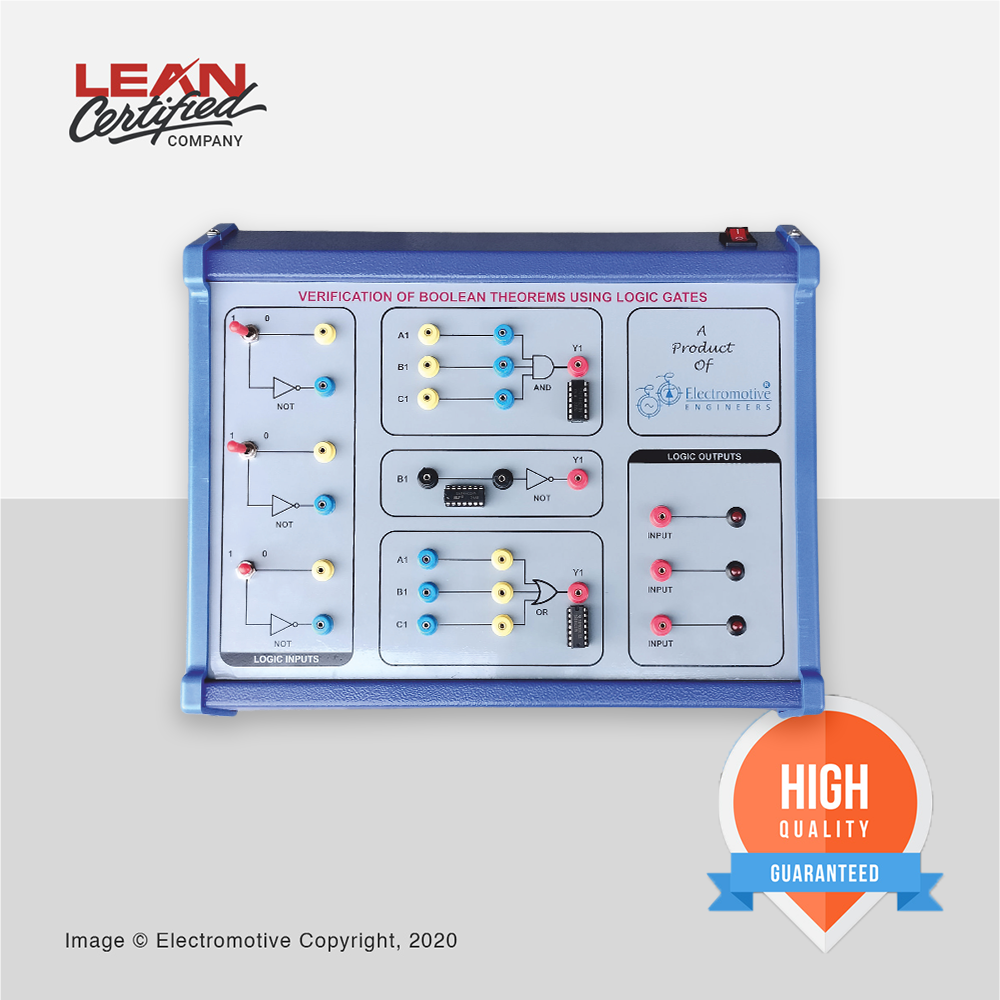

Electromotive has designed this trainer board to verify the boolean theorem’s (Demorgan’s Theorem) using logic Gates. Three input AND gate, Three input OR gate and a NOT gate are provided on glass epoxy PCB panel with all their inputs and outputs brought on panel and connected to 2mm banana sockets. Logic Input section consists of 3 inputs (inverted & noninveted) by toggle switches and the output section consists of 3 logic indicators. So it becomes easy to draw truth tables and verify the theorems. Cabinets is duo combination of plastic and metal parts, a 3 core mains cord provides fool proof earthing. Instruction manual gives detailed explanation of the experiments. Specifications Input Mains 220VAC @50/60 Hz In Built Power Supply 5V- IC Regulated Line Regulation 0.1% Load Regulation 0.1% Logic Inputs 3 in numbers along with their complements Logic Outputs 3 in numbers Logic Gates Incorporated 3 input AND Gate – 1 in no., 3 input OR Gate – 1 in no., NOT Gate – 1 in no. Gross Weight: 2.2 Kg Dimensions (packed): 350 mm X 262 mm X 100 mm (LXBXH)
